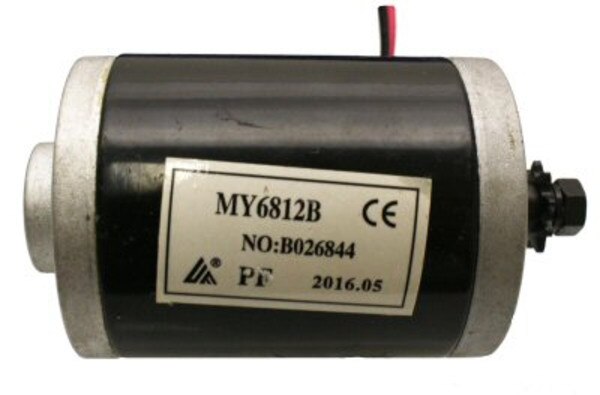

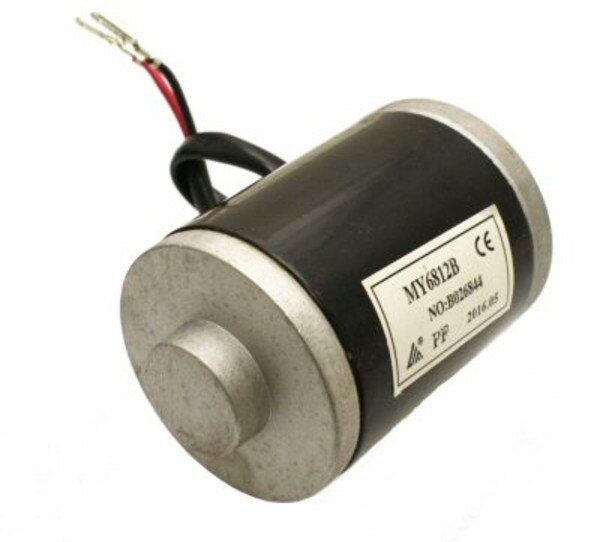

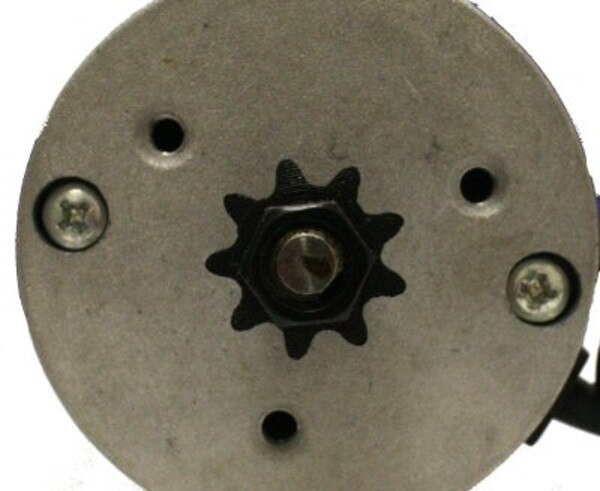

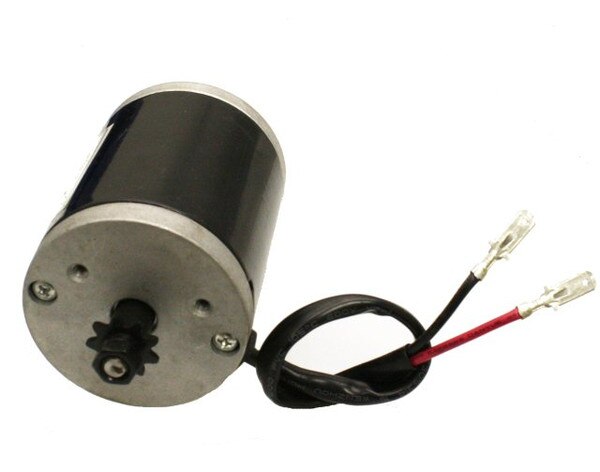

Razor e100, e125, e150 Electric Motor |
 |
|
|
|
|
|
|
| Razor e100, e125, e150 electric scooter 100 watt chain driven motor. This is for the CHAIN-DRIVEN Razor e100/e125 (version 5+) and e150 (version 1+) Electric Scooters. This e100 motor will not work on Razor e100 scooters that are belt-driven. |
|
| Specifications |
|
|
- Power Output/Voltage: 100W/24V/12V
- Non-Loaded Rotation Speed: 3400 RPM
- Rated Loaded Rotatation Speed: 2700 RPM
- Rated Torsion: 0.35
- N/Transmission Output (belt spacing): 3M
- Wire Length: 11 inches

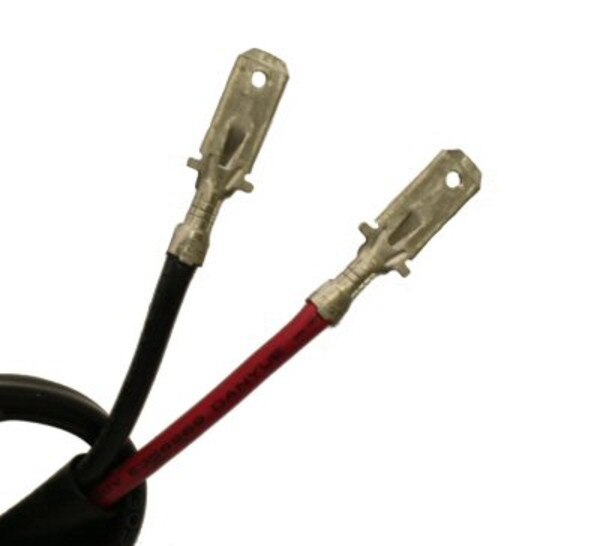

- 2-Pin Connector
- Outer Diameter: 68mm
- Overall Length (including shaft): 123mm
|
|
| Supported Models |
|
| Razor E100, Razor E125, Razor E150 |
|
|
|
| |
Part Number: 119-48 |
| |
Old Part Number: |
| |
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
|
|
|
