Controllers

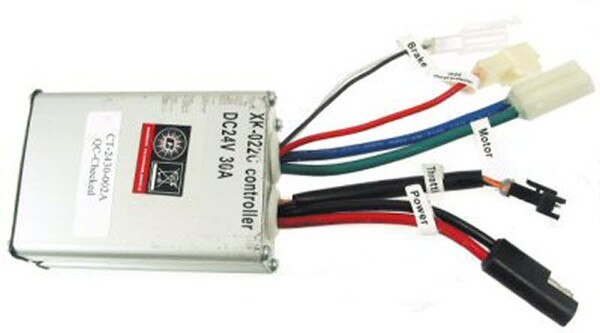

Currie 24 Volt, 5-Pin Controller.

*Please note: The Over Charge Protector (Charge Inhibitor) does not need to be hooked up. It is a safety feature on newer model scooters so that the scooter won't run while it's charging. This controller works with older models without using the Over Charge Protector plug.

Electronic items are non-returnable

• 24 Volt
• 30 Amp
• DC Brush motor

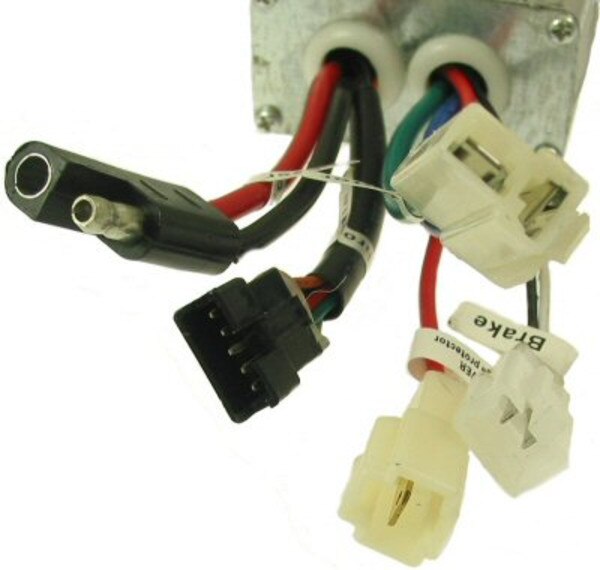

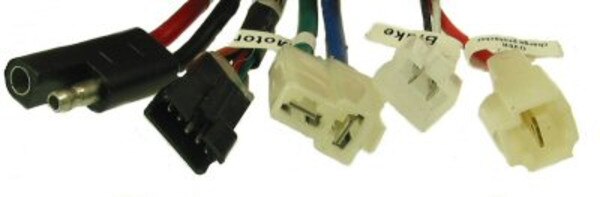

• 5 Plugs as follows:
• Throttle: 5-pin male(orange/black/red/green/gray)
• Power: 2 single (red/black male/female plug)
• Motor: 2-pin (blue/green female plug)
• Over Charge Protector: 1-pin (red male plug) *Please note: this plug does not have to be hooked up
• Brake: 2-pin (black/white male plug)

Schwinn 650 Red '08, Various unlisted makes/models, eZip 750 Silver (with V-Brake) '08, GT 500 Silver '06, Schwinn 500 Red '06, eZip 750 Silver (with V-Brake) '09, iZip 400 Red '07, Schwinn 500 CDFS Red '07, Schwinn 750 DD Grey '07, iZip 650 Blue '08, Schwinn 500 Green '08, iZip 750 DD Blue '07, MG 500 Silver '06, eZip 500 Green '09, eZip 900 Blue '09, Schwinn 500 CD Red '07, iZip 500 P/Blue '06, eZip 750 Silver (with V-Brake) '10, eZip 900 Blue '08, eZip 500 Green '08, iZip 750 DD Blue '08, eZip 500 Green '10, iZip 500 DD Blue '07, iZip 500 CD Silver '07, iZip 500 Silver '06, Schwinn 500 Black '06
