Currie 24V, 750W Electric Motor

Currie 24V, 750W Electric Motor

Photo Gallery

    Part Number: 120-58

    Availability:

    $104.99
    Quantity

    Add To Cart

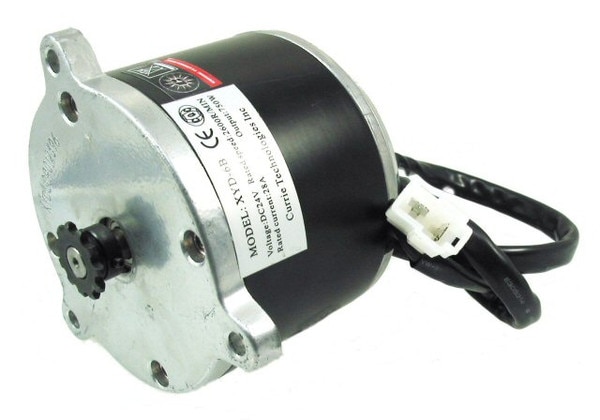

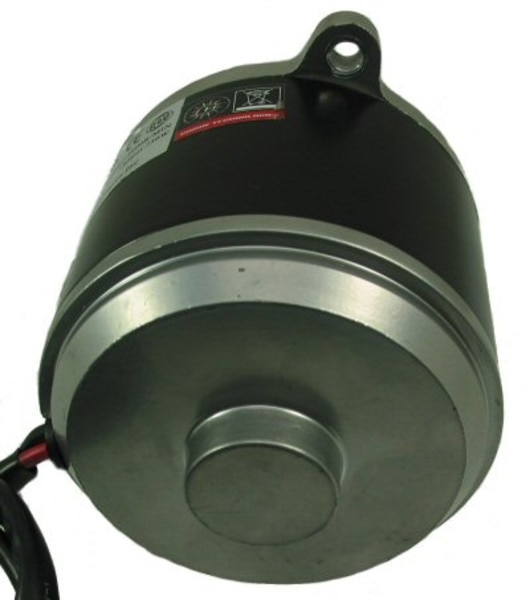

    Currie 24v, 750w Electric DC Brush Motor.

    • Model: XYD-6B
    • Voltage: DC 24V
    • Output: 750W
    • Rated Speed: 2600R/MIN
    • Rated Current: 28A
    • 11 Tooth Sprocket
    • Shaft Diameter: 10mm
    • Uses #25/#25H Chain

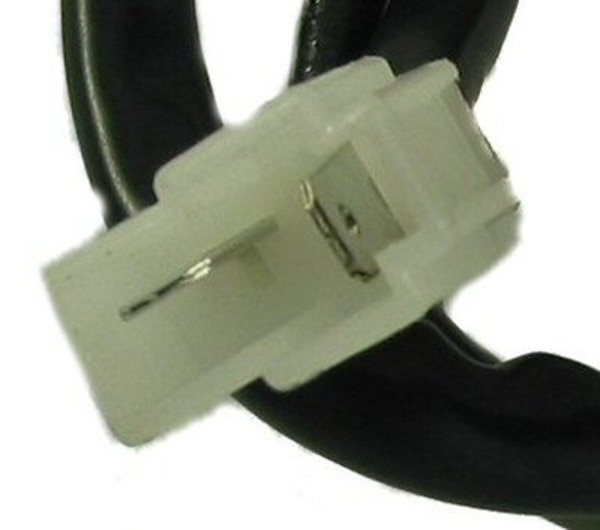

    • Plug Style: 2-pin, male
    • Wire Length: 26 inches

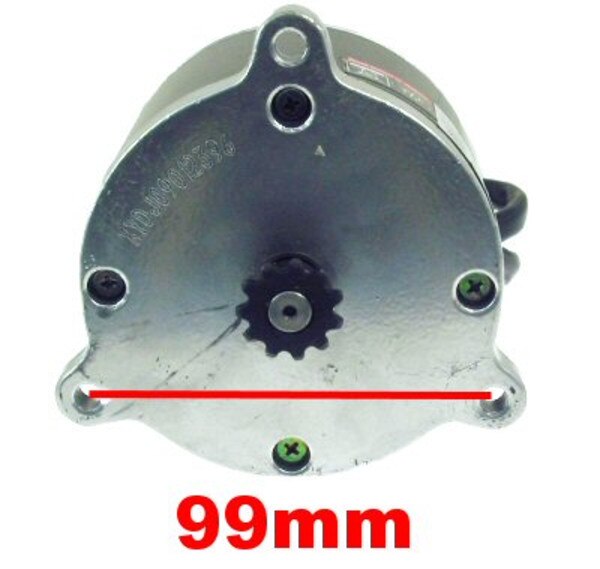

    • Outer Diameter (motor): 101mm
    • Overall Length (including shaft): 109mm

    eZip 750 Silver (with V-Brake) '08, eZip 750 Silver (with V-Brake) '09, eZip 750 Silver (with V-Brake) '10, Various unlisted makes/models
