150cc GY6 4-stroke Long-Case Engine

150cc GY6 4-stroke Long-Case Engine

Photo Gallery

Part Number:220-42

Availability:

$429.99


Product Information

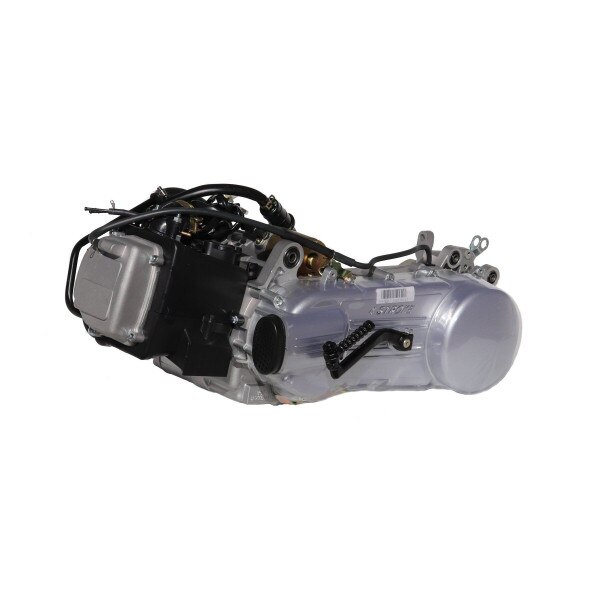

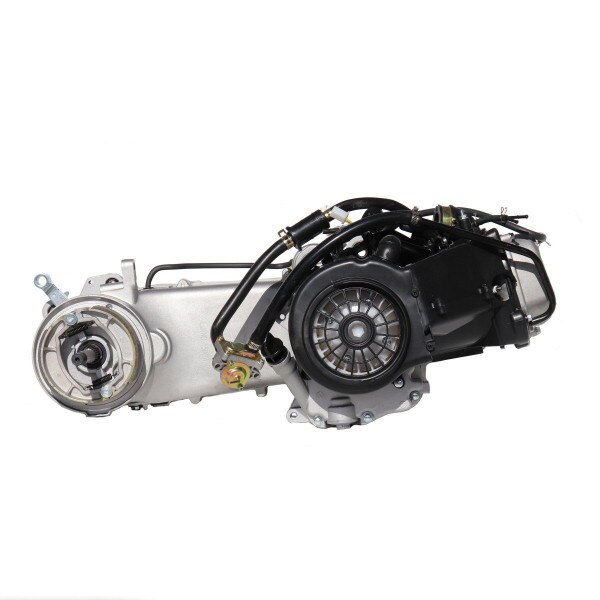

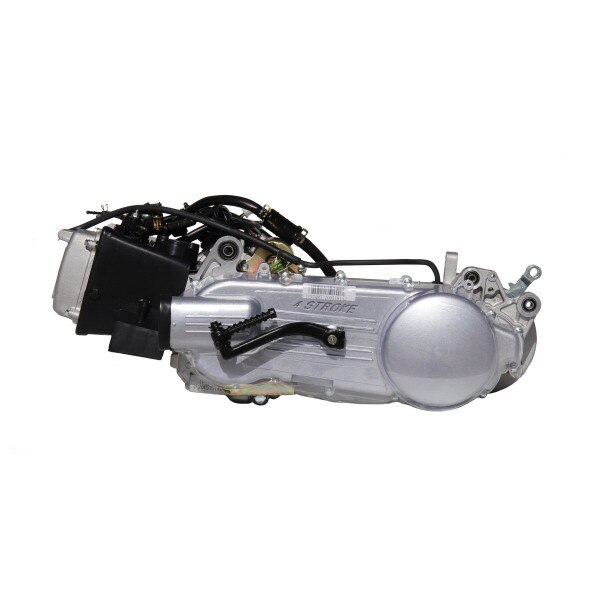

150cc 4-Stroke Long-Case GY6 Gas Engine with automatic CVT transmission.

This scooter engine is used in a wide variety of applications, including full-size street legal scooters, all terrain vehicles (ATVs), dirt bikes, and go karts. Compatible with both 125cc and 150cc engine size scooters and vehicles.

This complete engine includes electric starter, kick start, and CVT.

Engine is set up for PAIR Emissions System. PAIR is an acronym for Pulsed Secondary Air Injection System. It is an emissions control system used to lower HC and CO emissions. It works by allowing air into the exhaust flow.

Please Read The Following Important Notices:

  • This engine is shipped dry, included oil not installed. Includes 1 Liter of Bel-Ray Gear Saver Hypoid Oil 80W-90 and 1 Liter of Bel-Ray EXL Mineral 4T Engine Oil 10W-40. DO NOT RUN ENGINE WITHOUT ADDING SPECIFIED AMOUNTS OF OIL.


  • Check oil level after letting the engine idle for a few minutes, add additional oil if needed.

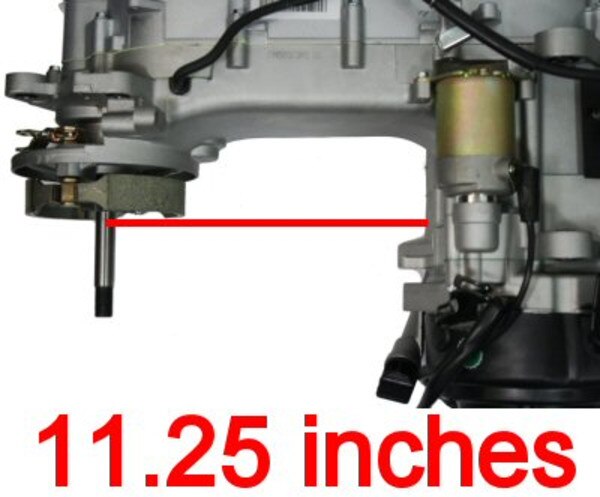

  • GY6 125cc and 150cc engines come in different sizes. Please measure the physical size of your engine and compare to our specifications before ordering. The difference is in the length of the rear swing arm. Different lengths have been made to accommodate different wheel sizes.

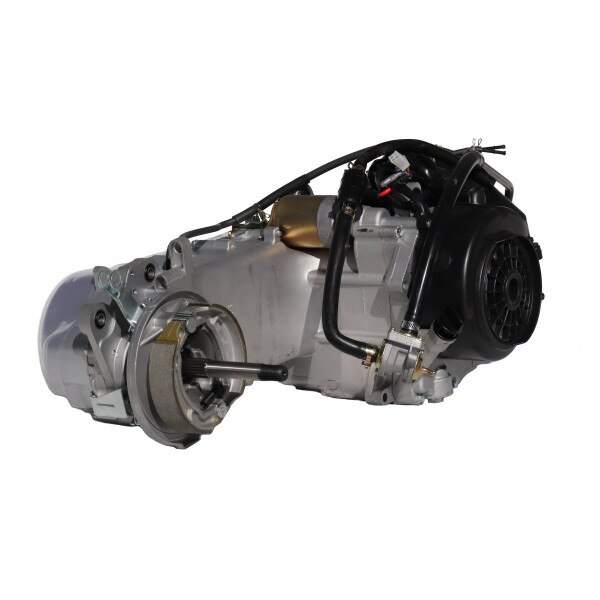

  • Set Up For Drum Brakes.


  • This Engine Only Ships to the Continental U.S.


  • Style: Long case
  • Engine Type: GY6 Single Cylinder 4-Stroke
  • Cooling: Air Cooled
  • Displacement: 149.6cc
  • Cylinder/Piston: 57mm
  • Starting: Electric/kick
  • 8 Coil A/C Stator
  • Output Shaft Length: 121mm
  • Distance Between Mounting Points: 5 Inches
  • Set Up For Rear Drum Brake
  • Set Up for PAIR Emissions System
  • Includes Premium Bando Drive Belt & NGK Spark Plug
  • Engine Oil: 0.75 Liters
  • Gear Oil: 0.17 Liters (6 fl. oz.)
  • Shipped Dry, Included Oil Not Installed - Do NOT Run Engine Without Adding Specified Amounts of Oil (Bel-Ray Oil Included)
  • This Engine Only Ships to the Continental U.S.

GY6 QMI/QMJ 152/157
