Universal Parts TB60 Big Bore Kit

Universal Parts TB60 Big Bore Kit

Photo Gallery

Part Number: 169-185

Availability:

$49.99
Quantity

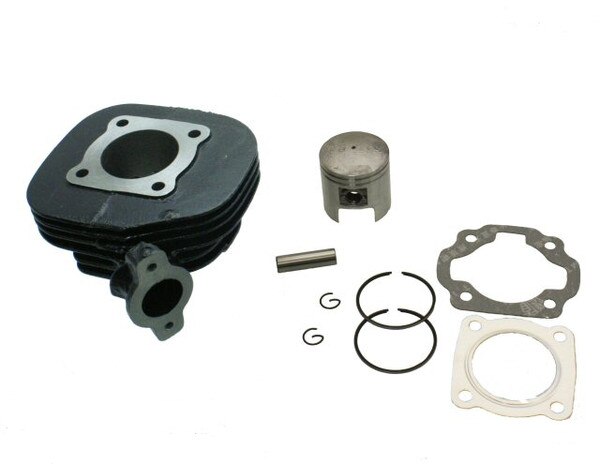

img-qind.JPGUniversal Parts Big Bore Cylinder Kit for 50cc 2-stroke TB50 1DE41QMB engines.

Please see our Warranty & Returns Policy.

  • Bore: 43mm

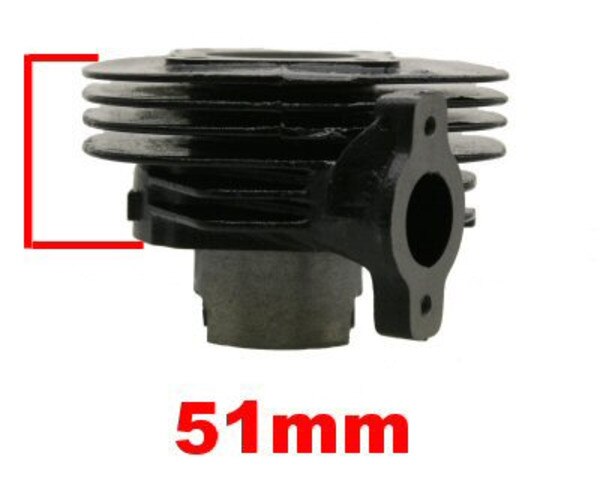

  • Overall Height (cylinder): 81.5mm
  • Piston Pin Outer Diameter: 10mm
  • Piston Height: 44.5mm
  • Piston Compression Height: 21.5mm

Qingqi, Qingqi Mulan, Qingqi QM50QT-B2, Suzuki
