SSP-G 47mm Kymco 2-Stroke AC Big Bore Cylinder Kit

SSP-G 47mm Kymco 2-Stroke AC Big Bore Cylinder Kit

Photo Gallery

Part Number: 169-405

Availability:

$149.99
Quantity


img-qind.JPGSSP-G 47mm 2-Stroke Air-Cooled Big Bore Cylinder Kit for the following models:

  • Kymco Agility 50
  • Kymco Grand Dink 50
  • Kymco Like 50
  • Kymco Mongoose 50
  • Kymco People 50
  • Kymco Super 8 50
  • Kymco Super 9 50
  • Kymco Top Boy (Cobra) 50
  • Kymco Vitality 50
  • Kymco Yup 50
  • Kymco Yager (Spacer) 50

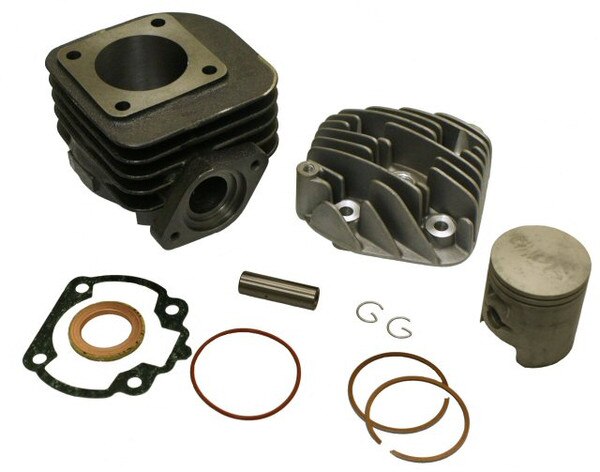

Includes cylinder head, cylinder, piston, 12mm pin, rings, circlips, head gasket, base gasket and exhaust gasket.

Please see our Warranty & Returns Policy.

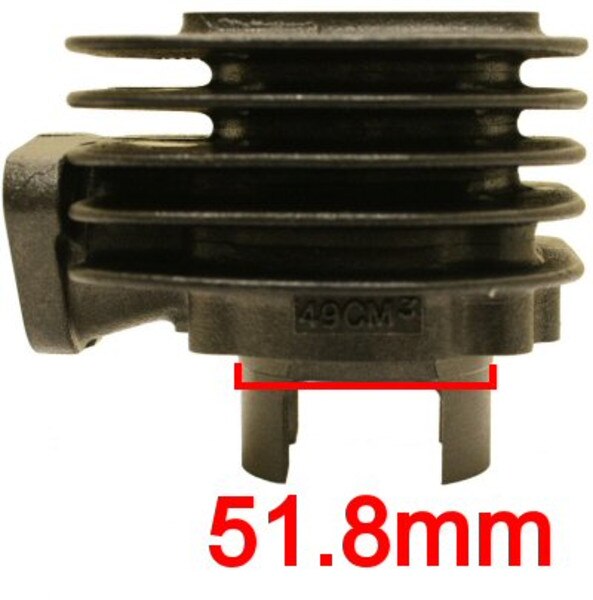

  • Overall Height (cylinder): 90mm
  • Wrist Pin Diameter: 12mm
  • Wrist Pin Length: 40mm
  • Includes Wrist Pin Bearing
  • Wrist Pin Bearing Dimensions: I.D.: 12.15mm, O.D.: 16.8mm, Length: 14.15mm
  • Piston Diameter: 46.9mm
  • Made in Taiwan

Kymco, Kymco Agility 50, Kymco Cobra 50, Kymco Grand Dink 50, Kymco Like 50, KYMCO People 50, Kymco Quad Mongoose 50, Kymco Super 8 50, KYMCO Super 9, KYMCO Vitality, Kymco Yager 50, KYMCO Yup 50, Various unlisted makes/models
