Universal Parts 24V, 350W Electric Motor with Bracket

$69.99
SKU: 220-54
Restock: Limited Supply

This item is IN STOCK

Current Stock: 2

Back

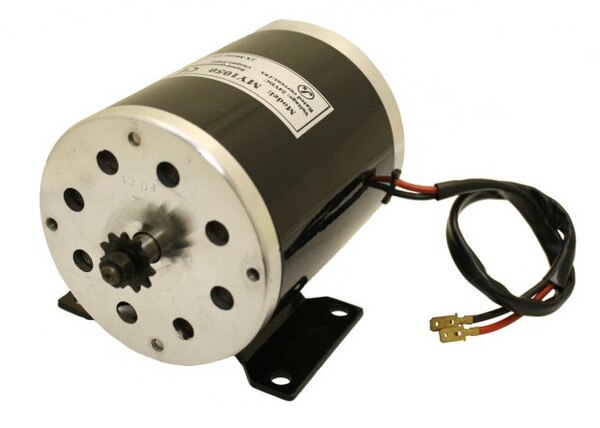

Universal Parts 350w, 24v chain drive electric motor with bracket. This electric motor is the most common motor found on 24v imported electric scooters.
Back

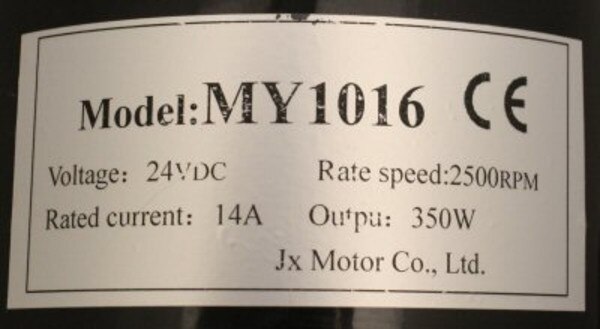

  • 24 Volt DC
  • Output: 350 Watt
  • Chain driven
  • 2500 RPM
  • 14 AMP

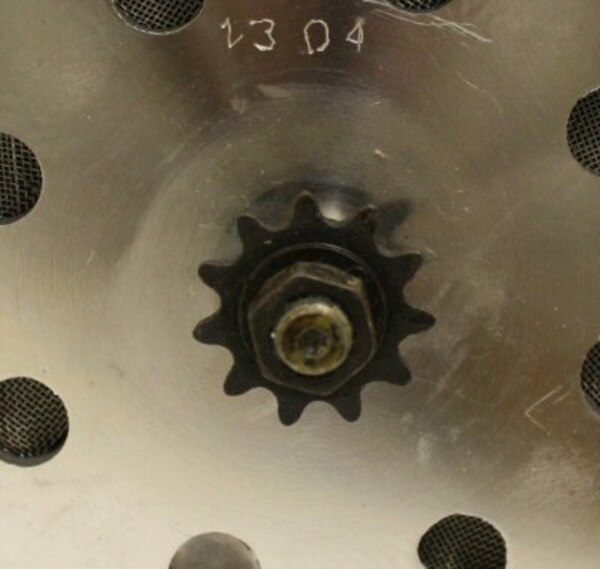

  • 11 Tooth Sprocket
  • Outer Diameter (shaft): 11.9mm
  • Outer Diameter (body of motor): 108mm
  • Overall Length (body of motor): 134mm
  • Shaft Length: 24mm

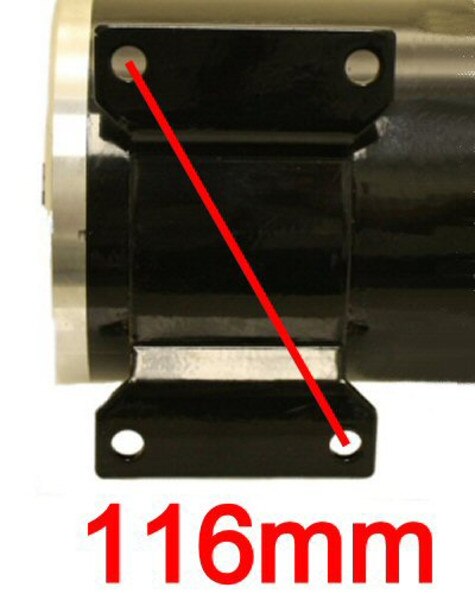

  • Diagonal Bolt Hole Spacing (bracket): 116mm
Back
Various unlisted makes/models
