	50cc QMB139, Performance Cylinder Kit

Quick Links

Shipping Options | Return Policy | Questions?

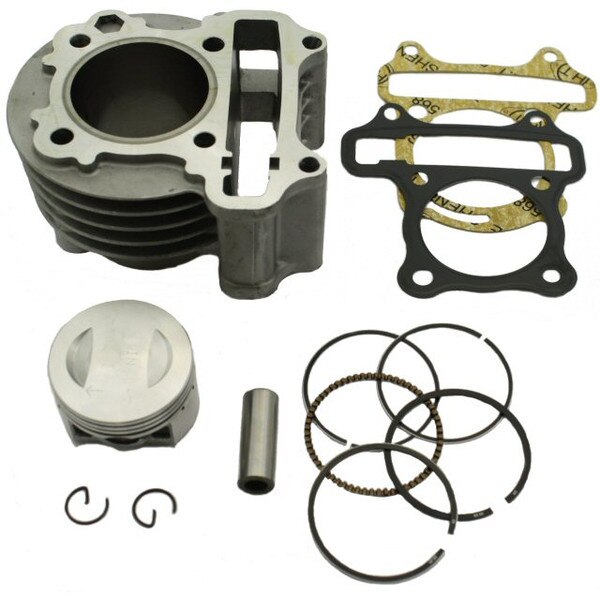

50cc QMB139 4-stroke 50mm, Racing Big Bore Cylinder Set. Kit includes cylinder, piston, rings, piston pin, cir clips, head gasket, and base gasket. **Note: This is a non-returnable item. Please confirm this is the correct item prior to purchasing. Please see our Warranty & Returns for further detail.

Specifications

We recommend that you use our part #169-70 cylinder head with this set as some stock cylinder heads will not fit.

Upgrades to 80cc

Cylinder Bore: 50mm

Wrist Pin Diameter: 13mm

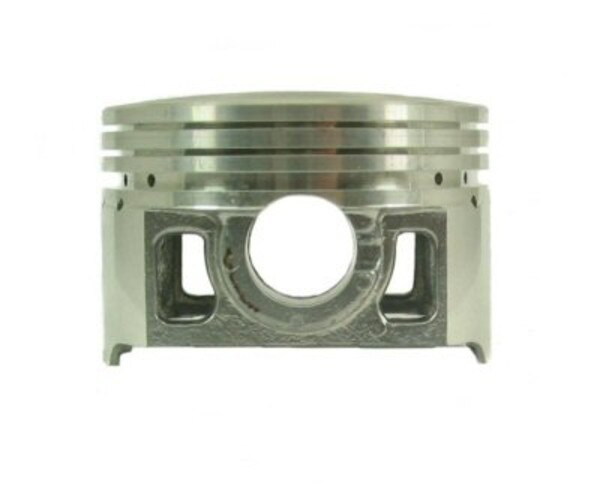

Total Piston Height: 34.8mm

Compression Height (from center of wrist pin hole to top edge of piston): 18.3mm

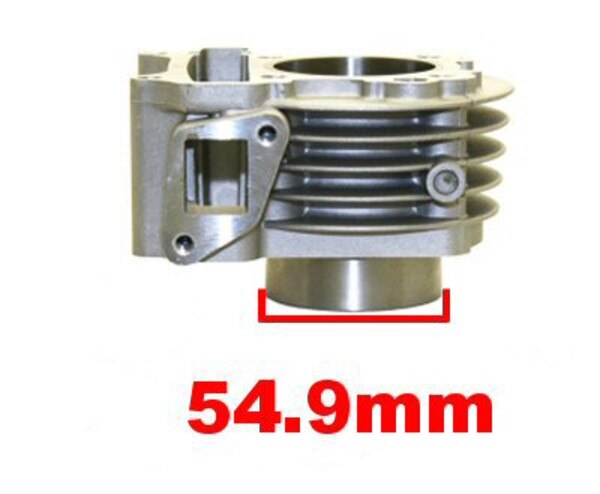

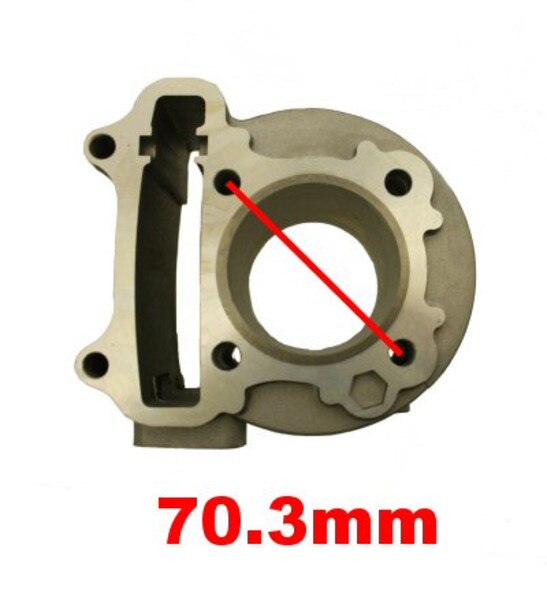

Please see below for measurements

Supported Models

Jalon X8 Retro 50cc, Panterra Fusion 50cc, Lifan, Qingqi QM50QT-6V, SUNL, Various unlisted makes/models, Strada, Qingqi QM50QT-4G, Baja SC50-P, Schwinn

Part Number: 169-54

Old Part Number:
