Universal Parts Starter Clutch Plate Assembly

$27.99
SKU: 161-189

This item is IN STOCK

Current Stock: 4

Back

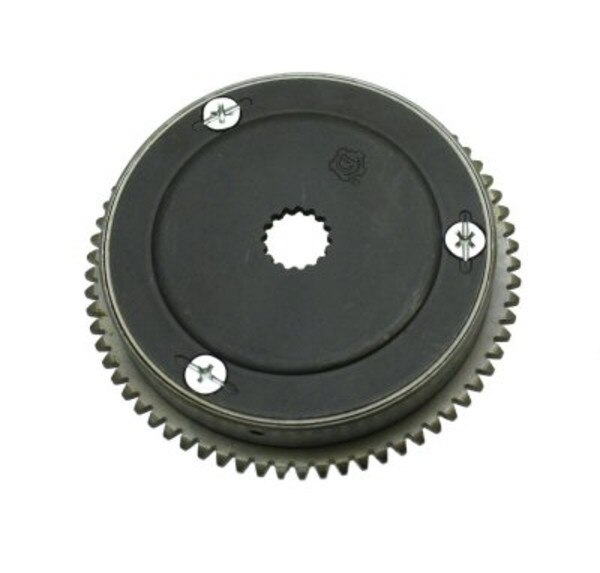

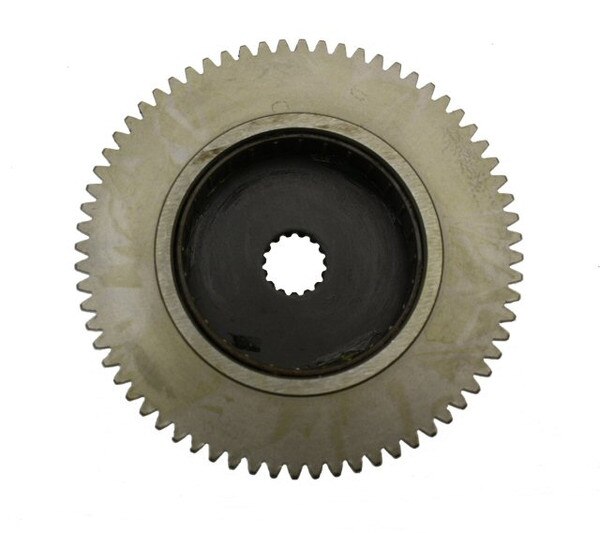

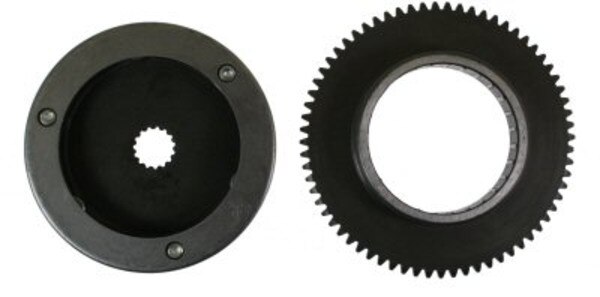

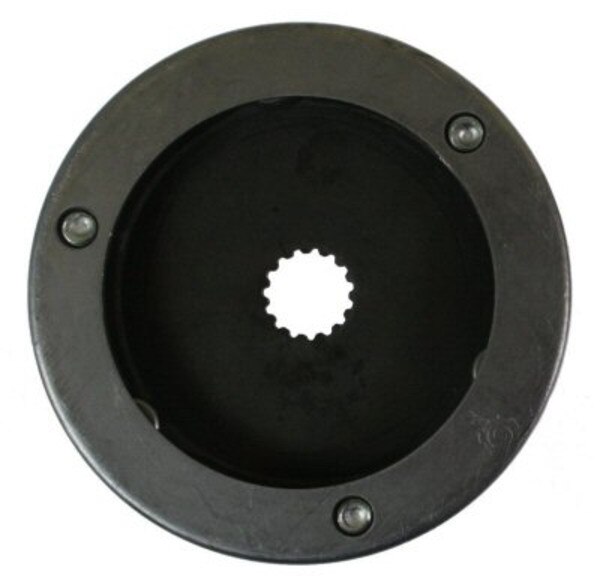

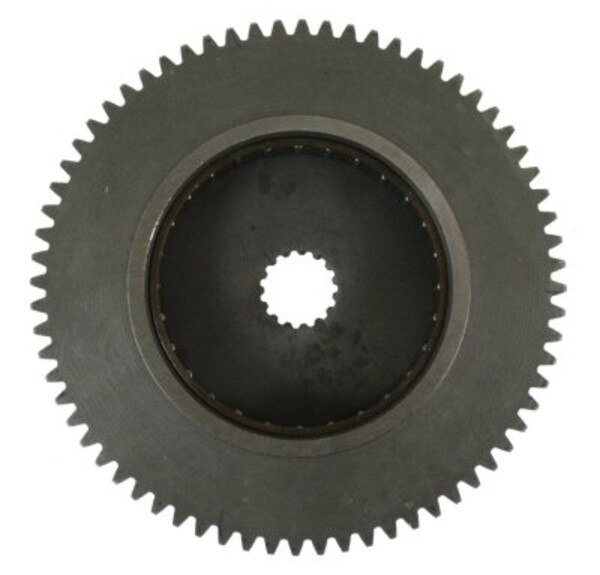

Universal Parts Starter Clutch Plate Assembly with Gear Type-2 for 50cc 2-stroke Minarelli 1PE40QMB Jog engines.
Back

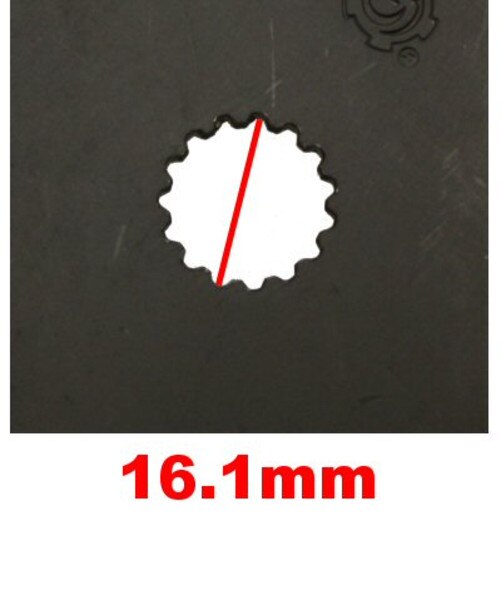

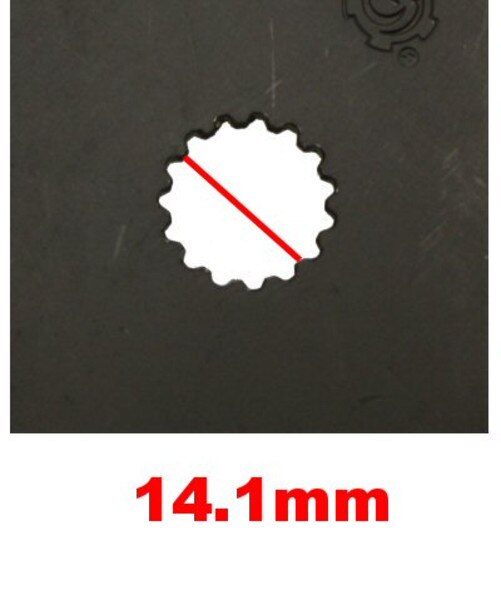

  • Number of Splines (starter clutch): 15
  • Overall Outer Diameter (starter clutch): 92.5mm
  • Overall Inner Diameter(starter clutch): 66mm
  • Total Gear Diameter: 106mm
  • Total Gear Diameter (non-tooth side): 65mm
  • Number of Teeth on Gear: 68
Back
40QMB 50cc 2-stroke, Various unlisted makes/models, Vento Triton, Vento Zip R3i
