SSP-G 47mm Kymco 2-Stroke AC Big Bore Cylinder Kit

$154.99
SKU: 169-405

Out of Stock

Available for BACKORDER

Back

SSP-G 47mm 2-Stroke Air-Cooled Big Bore Cylinder Kit for the following PISTON PORTED models (does not fit reed valve engines):


  • Kymco Agility 50
  • Kymco Grand Dink 50
  • Kymco Like 50
  • Kymco People 50
  • Kymco Super 8 50
  • Kymco Super 9 50
  • Kymco Top Boy (Cobra) 50
  • Kymco Vitality 50
  • Kymco Yup 50
  • Kymco Yager (Spacer) 50

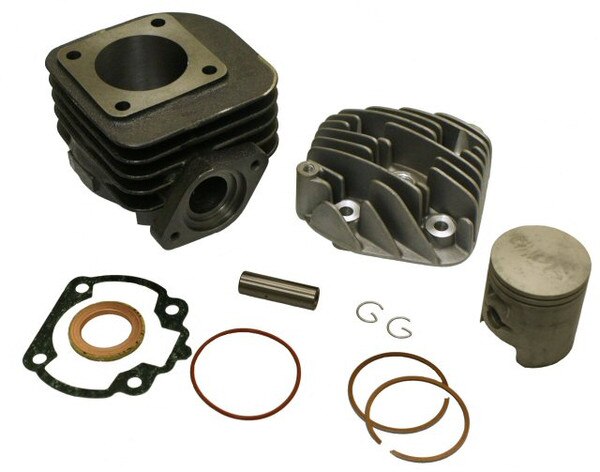

Includes cylinder head, cylinder, piston, 12mm pin (not pictured), pin bearing, rings, circlips, head gasket, base gasket and exhaust gasket.

Please see our Warranty & Returns Policy.

Back

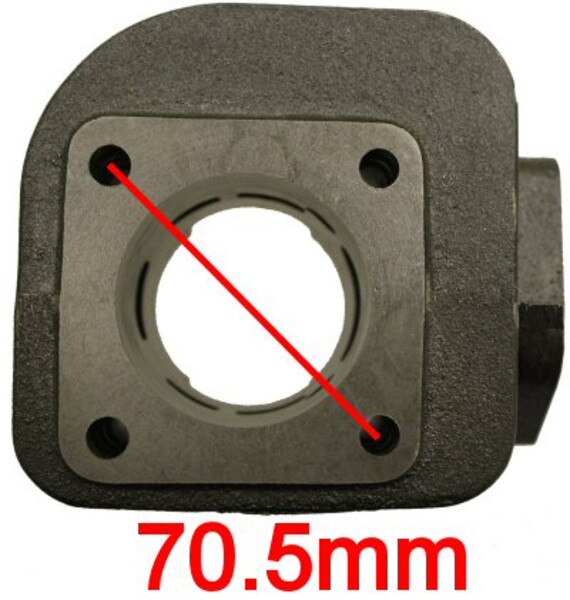

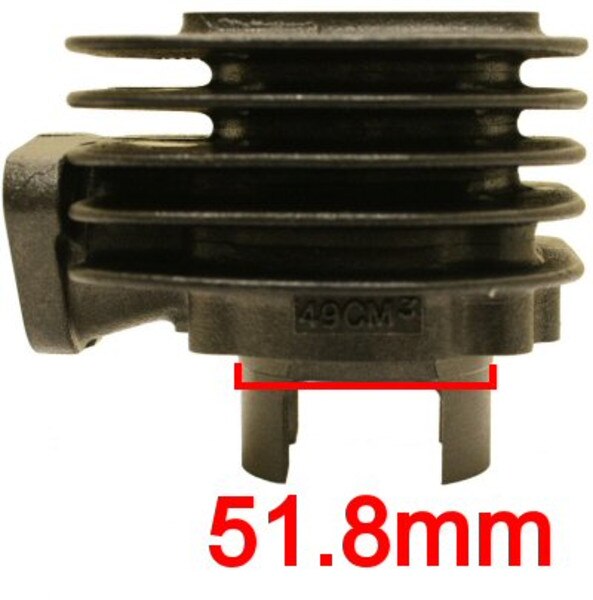

  • Overall Height (cylinder): 90mm
  • Wrist Pin Diameter: 12mm
  • Wrist Pin Length: 40mm
  • Wrist Pin Bearing Dimensions: I.D.: 12.5mm, O.D.: 16.8mm, Length: 14.45mm
  • Piston Diameter: 46.9mm
  • Made in Taiwan
Back
Kymco, Kymco Agility 50, Kymco Cobra 50, Kymco Grand Dink 50, Kymco Like 50, KYMCO People 50, Kymco Super 8 50, KYMCO Super 9, KYMCO Vitality, Kymco Yager 50, KYMCO Yup 50, Various unlisted makes/models
