Battery Selection Chart
It's easiest to match up the model number but you can also find the correct battery by matching up the measurements and voltage/amperage. If you're still unsure, give us a call at 866-478-8700 or chat with a live sales person and we will be glad to help you out!
| Maintenance Free AGM | |||||||
|---|---|---|---|---|---|---|---|
| Part Number | Picture | Voltage (V) | Ampere-hour (AH) | Length | Width | Height | Info |
| 104-13 |  | 12 | 3 | 4.40" 112mm | 2.74" 70mm | 3.39" 86mm | YTX4L-BS |
| 104-14 |  | 12 | 4 | 4.40" 112mm | 2.70" 69mm | 4.13" 105mm | YTX5L-BS |
| 104-55 |  | 12 | 6 | 4.41" 112mm | 2.70" 69mm | 5.05" 128mm | YTX7L-BS |
| 104-62 |  | 12 | 6 | 4.4" 112mm | 2.70" 69mm | 4.12" 105mm | YTZ7S |
| 104-15 |  | 12 | 6 | 5.91" 150mm | 3.39" 86mm | 3.62" 92mm | YTX7A-BS |

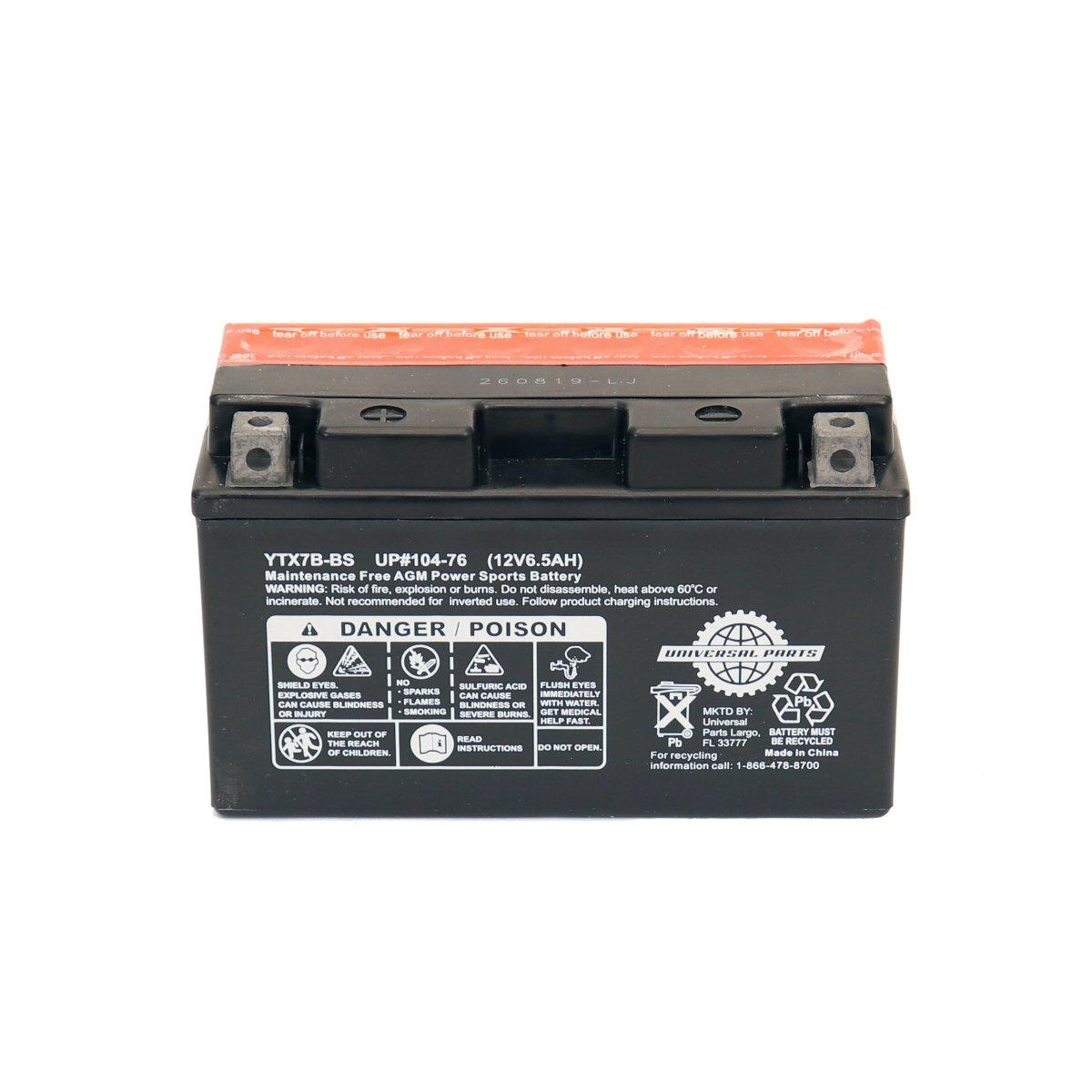

| 104-76 |  | 12 | 6.5 | 5.91" 150mm | 2.56" 65mm | 3.66" 93mm | YTX7B-BS |
| 104-56 |  | 12 | 8.5 | 5.94" 151mm | 3.40" 88mm | 4.20" 107mm | YTX9-BS |
| 104-75 |  | 12 | 9 | 5.31" 135mm | 2.95" 75mm | 5.47" 139mm | YTX9A-BS |
| 104-57 |  | 12 | 10 | 5.90" 150mm | 3.40" 87mm | 5.12" 130mm | YTX12-BS |
| 104-58 |  | 12 | 12 | 5.94" 151mm | 3.40" 87mm | 5.77" 147mm | YTX14-BS |
| 104-59 |  | 12 | 14 | 5.24" 133mm | 3.55" 90mm | 6.44" 164mm | YTX14AHL-BS |
| Factory Activated AGM | |||||||
| Part Number | Picture | Voltage (V) | Ampere-hour (AH) | Length | Width | Height | Info |
| 104-41 |  | 12 | 3 | 4.45" 113mm | 2.72" 69mm | 3.39" 86mm | YTX4L-BS (FA) |
| 104-42 |  | 12 | 4.5 | 4.43" 113mm | 2.72" 69mm | 4.14" 105mm | YTX5L-BS (FA) |
| 104-43 |  | 12 | 6 | 5.94" 151mm | 3.40" 87mm | 3.70" 94mm | YTX7A-BS (FA) |
| 104-50 |  | 12 | 6 | 4.45" 113mm | 2.70" 69mm | 4.20" 107mm | YTZ7S (FA) |
| 104-51 |  | 12 | 8.5 | 5.94" 151mm | 3.40" 87mm | 4.20" 107mm | YTX9-BS (FA) |
| 104-54 |  | 12 | 12 | 5.94" 151mm | 3.40" 87mm | 5.77" 147mm | YTX14-BS (FA) |
| Shorai Lithium Iron | |||||||
| Part Number | Picture | Voltage (V) | Ampere-hour (AH) | Length | Width | Height | Info |
| 104-47 |  | 12 | 7 | 4.45" 113mm | 2.28" 58mm | 3.50" 89mm | LFX07L2-BS12 |
| 104-48 |  | 12 | 9 | 4.45" 113mm | 2.28" 58mm | 3.50" 89mm | LFX09L2-BS12 |
| 104-49 |  | 12 | 9 | 4.45" 113mm | 2.28" 58mm | 3.50" 89mm | LFX09A2-BS12 |
| 104-73 |  | 12 | 14 | 4.45" 113mm | 2.28" 58mm | 3.50" 89mm | LFX14L2-BS12 |
| Sealed Lead Acid (SLA) | |||||||
| Part Number | Picture | Voltage (V) | Ampere-hour (AH) | Length | Width | Height | Info |
| 104-5 |  | 12 | 4.5 | 3.54" 90mm | 2.72" 69mm | 4.00" 102mm | SLA12-4.5 |
| 104-4 |  | 12 | 7.2 | 5.94" 151mm | 2.56" 65mm | 3.70" 94mm | SLA12-7.2 |
| 104-7 |  | 12 | 10 | 5.94" 151mm | 2.56" 65mm | 4.37" 111mm | SLA12-10 |
| 104-9 |  | 12 | 12 | 5.94" 151mm | 3.87" 98mm | 3.75" 95mm | SLA12-12 |
| 104-18 |  | 12 | 18 | 7.17" 182mm | 3.03" 77mm | 6.57" 167mm | SLA12-18 |
