Naraku QMB139 47mm 72cc Performance Cylinder Kit

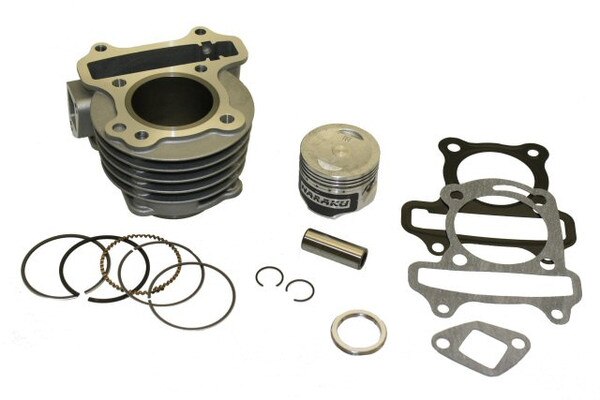

Naraku 50cc QMB139 4-stroke 47mm Big Bore Cylinder Kit. Kit includes cylinder, piston, rings, piston pin, cir clips, head gasket, base gasket, exhaust gasket and cam chain tensioner gasket.
This is a drop in cylinder kit, no crank case modifications required! When used in conjunction with a stock stroke of 41.4mm the total displacement comes out to 72cc.
Please see our Warranty & Returns Policy.
This is a drop in cylinder kit, no crank case modifications required! When used in conjunction with a stock stroke of 41.4mm the total displacement comes out to 72cc.
Please see our Warranty & Returns Policy.
- Upgrades to 72cc
- Cylinder Bore: 47mm
- Cylinder Sleeve Outer Diameter: 53.1mm
- Wrist Pin Diameter: 13mm
- Total Piston Height: 34.1mm
QMB139 50cc/49cc , Various unlisted makes/models
