Universal Parts QMB139 Crankshaft, Type-1

SKU: 151-19

This item is IN STOCK

Current Stock: 19

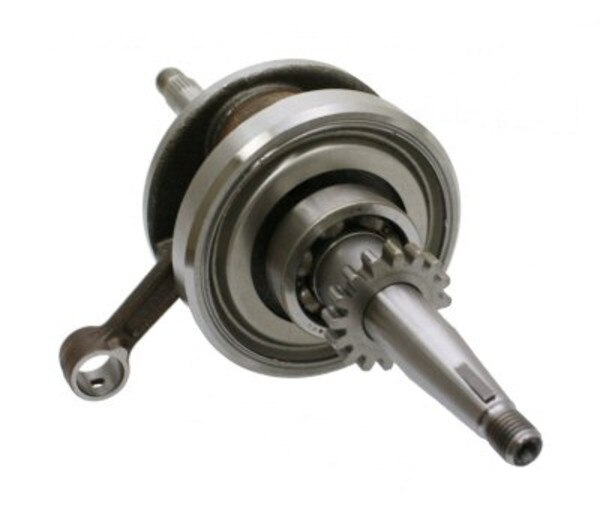

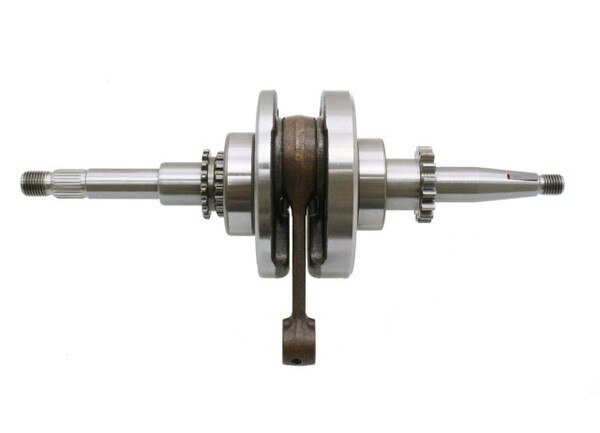

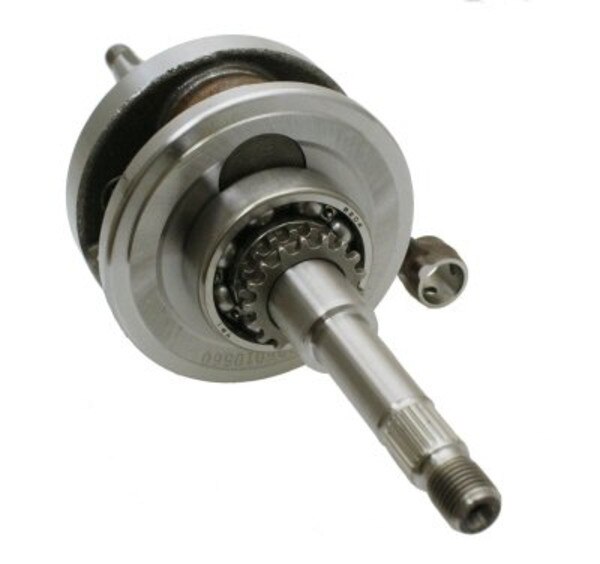

Universal Parts Crankshaft Assembly, Type-1 for 50cc 4-stroke QMB139 engines. Has 16 tooth oil pump drive gear.
  • Stroke: 41.4mm
  • Overall Length: 247mm
  • Thread Size (tapered side): M10x1.25
  • Thread Size (spline side): M12x1.25
  • Bearing Outer Diameter (tapered side): 42mm
  • Bearing Outer Diameter (spline side): 47mm
  • Number of Splines: 26
  • Number of Teeth (oil pump drive gear): 16
QMB139 50cc/49cc , Various unlisted makes/models
