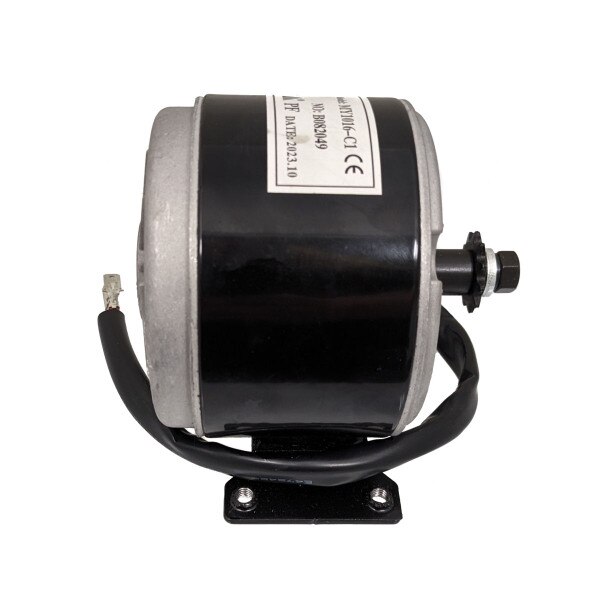

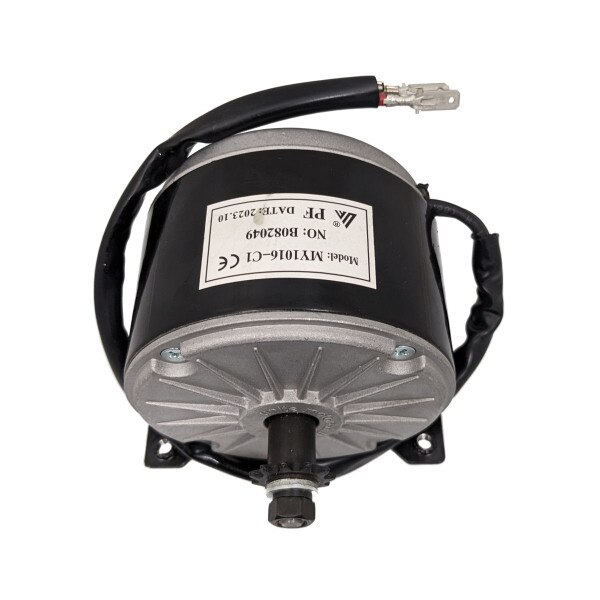

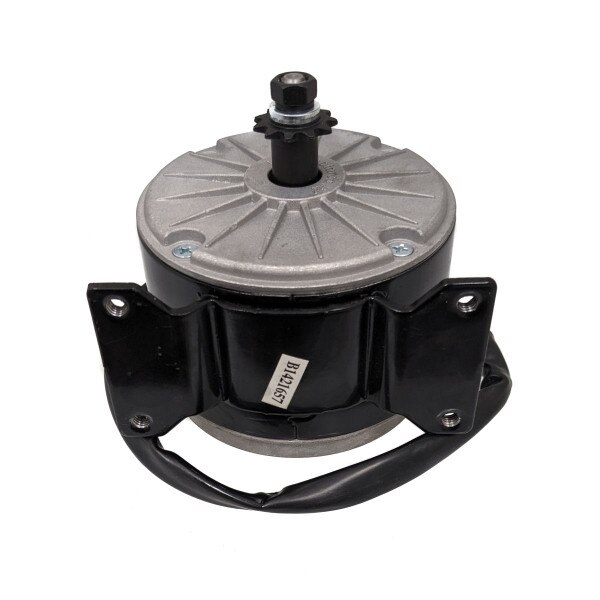

Universal Parts 24V, 350W Motor for Razor RSF350 and MX350 (V1-8)
Universal Parts 24V, 350w MY1016-C1 chain drive electric brush motor for Razor RSF350 Electric Sport Bike, Razor iMod and MX350 Dirt Rocket (Versions 1-8).
Please Note: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed.
Please Note: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed.
- MY1016-C1 Motor
- 350 Watt
- 24 Volt
- 11 Tooth Sprocket
- Uses #25 Chain
- Torque Rating: 1.20 Nm
- 2750 RPM
- Bracket Hole Spacing (left to right): 95mm
- Bracket Hole spacing (front to back): 42mm
- Overall Length: 110mm
- Overall Width: 116mm
- Overall Height: 106mm
- Wire Length Including Connectors: 15 inches
- Compatible with Razor #W15128040030
- Left or Right Rotation by Reversing Wires
Razor, Razor iMod, Razor MX350 , Razor RSF350
