Universal Parts 24V, 350W Motor for Razor Dune Buggy

SKU: 119-280

This item is IN STOCK

Current Stock: 33

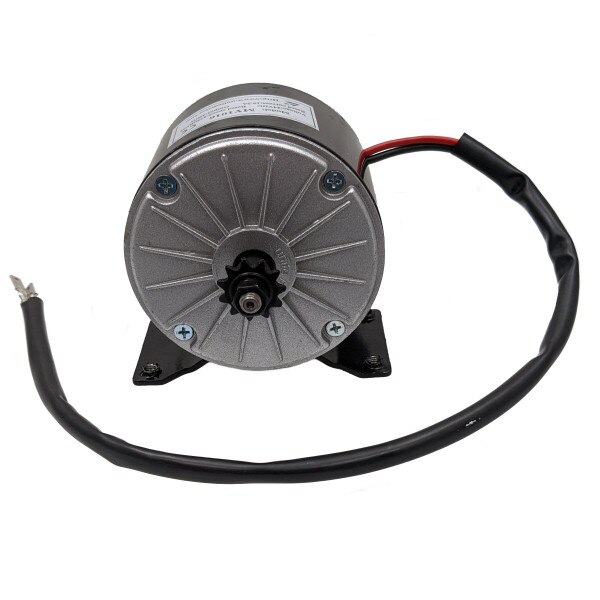

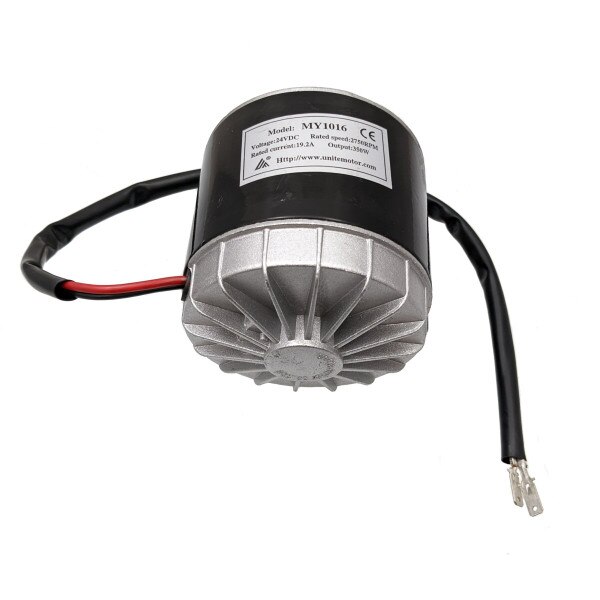

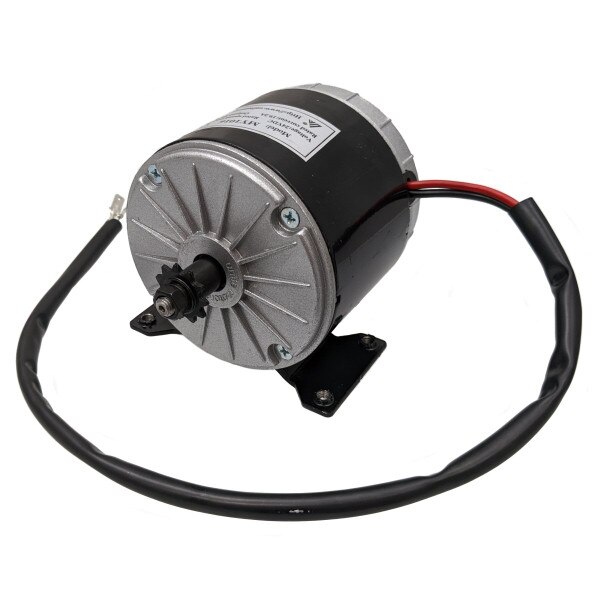

Universal Parts 24V, 350w MY1016 chain drive electric brush motor for Razor Dune Buggy.

Please Note: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed.
  • MY1016
  • Razor OEM# W25143500030
  • 350 Watt
  • 24 Volt
  • 11 Tooth Sprocket
  • Uses #25 Chain
  • Torque Rating: 1.20 Nm
  • 2750 RPM
  • Bracket Hole Spacing (left to right): 95mm
  • Bracket Hole spacing (front to back): 42mm
  • Overall Length (with sprocket): 136.5mm
  • Overall Width (including mounting bracket): 110mm
  • Overall Height: 106mm
  • Wire Length Including Connectors: 20 inches
Razor Dune Buggy
