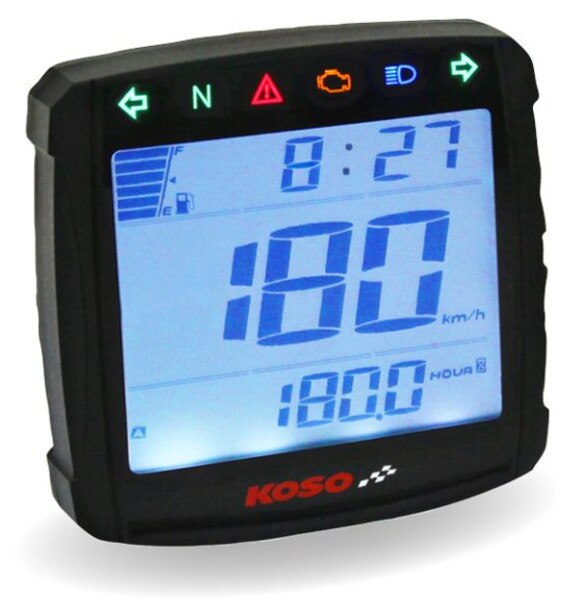

Koso XR-01S Speedometer
The Koso XR-01S Universal Fit Speedometer (BB026001) is thinner and lighter than its previous version. Koso's innovative XR-01S Speedometer features most importantly a larger, higher quality, and easy to read LCD display. The indicator light functions are still there; however, Koso has added one more, which makes a total of 6 indicator lights. New interesting functions were added and they include a 2 hour meter reading, a maintenance hour meter for oil change, 2 trip meter readings, and a useful clock.
The XR-01S is simplicity at its best. This meter is user-friendly, easy to read during day or night, and is a great fit for any kind of motorcycle, scooter or other bike.
Click here for installation instructions.
- Speedometer - Display range : 0-225 MPH / 0-360 km/h Display unit : MPH or KM/H
- Odometer - Display range : 0-99999 km / miles, Reset automatically
- Trip meter A/B Display range : 0 – 9999,9 km / miles, Resettable
- Total trip meter - Reset automatically after 99999 km / miles
- Maintenance - Trip meter for oil change (with oil symbol)
- Total hours - Reset automatically after 99999
- Hour meter A/B - Display range : 0 – 9999,9 Resettable
- Volt meter - Display range : DC8.0~18.0V, Flashing warning when voltage lower than 11.5V or higher than 15.5V
- Backlight brightness - 5 segments
- Clock - 12 / 24 H
- Tire Circumference - Setting range : 300 – 2500 mm
- Fuel meter - Setting range : 100Ω / 250Ω / 510Ω
- Indicator lights - Neutral (Green), High beam (Blue), Turn signal (Green), EOBD (Amber), Temperature alarm (Red)
Most Makes/ Models
