50cc 2-stroke Crankshaft, 10mm

50cc 2-stroke Crankshaft, 10mm

Photo Gallery

Part Number: 161-194

Availability:

$79.99
Quantity

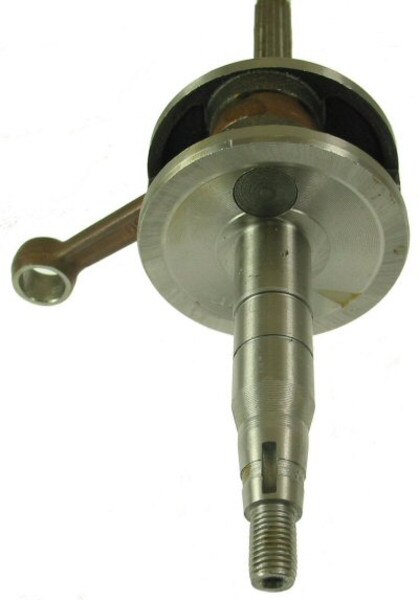

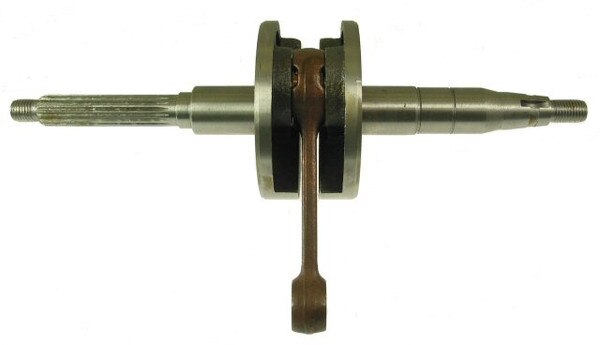

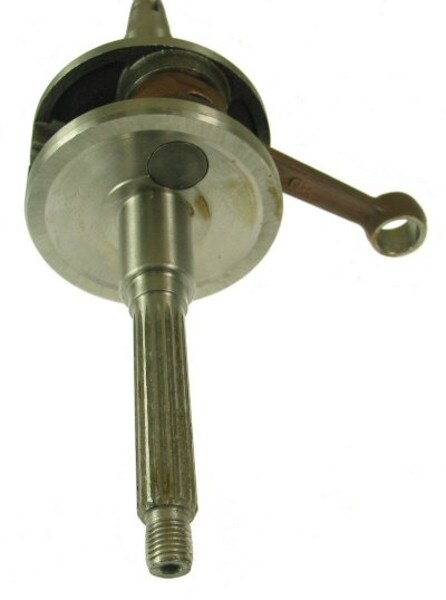

Crankshaft Type-2 for 50cc 2-stroke Minarelli 1PE40QMB Jog engines, 10mm

  • Overall Length: 240mm
  • Flywheel Thread Size: M10x1.25
  • Flywheel Thread Length: 14mm
  • Drive End Thread Size: M10x1.25
  • Drive End Thread Length: 11mm
  • Inner Diameter of Piston Pin Hole: 14mm
  • Number of Splines: 17
  • For Use With 10mm Piston Pin

40QMB 50cc 2-stroke, CFMoto, Diamo, Eton, Kymco, Peugeot, PGO, Piaggio, Redcat, Roketa, SUNL, SYM, Tank, TGB, United Motors, Various unlisted makes/models, Vento, Verucci, Wildfire, Yamaha, Yamaha Jog, ZNEN
